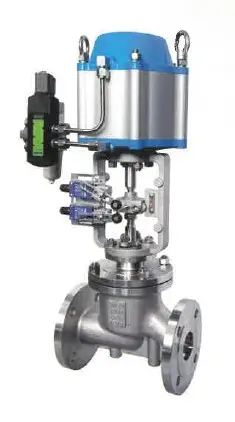

ON/OFF 글로브밸브
특징 / Feature / Application
- – 공압식 알루미늄 인발실린더 방식
- – 내식성이 강한 바디
- – 정확한 유량조절
- – 내구성에 강한 알루미늄 인발 실린더
- – 반도체, 수처리, 자동화설비 등
▶ 공통 사항 / Common Specifications
| Valve Size | DN15 ~ DN400 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Actuator Type | Pneumatic Cylinder | |||||||||||||
| Body Style | 2Way Straight Globe, Algle Globe | |||||||||||||
| Pressure Rating | ASME Class 150 to 1500 | |||||||||||||
| End Connection | Flanged, Socket welded, Butt welded, Ring joint type, etc | |||||||||||||
| Trim Desing | Unbalanced, Balanced Conventional P-Port Cage, Window Cage, Multi-hole 1,2,3stage | |||||||||||||
| Bonnet Type | Bolted design, Pressure seal design Standard, Extension, Cryogenic, Bellows seal | |||||||||||||
| Seat Leakage | ANSI B16.34 / FCI 20-1 Class IV(Standard), V(Optional), VI(Optional, Soft seat) | |||||||||||||
| Characteristic | Equal %, Linear, Modified %, Quick opening Custom engineered | |||||||||||||
| Standard Materials | ||||||||||||||
| Body & Bonnet |
| |||||||||||||
| Trim | 316SS, 410SS, 420SS, 420J2SS,630SS F-11, F-22, F-91 with Stellite overlay Inconel, Others special materials. | |||||||||||||

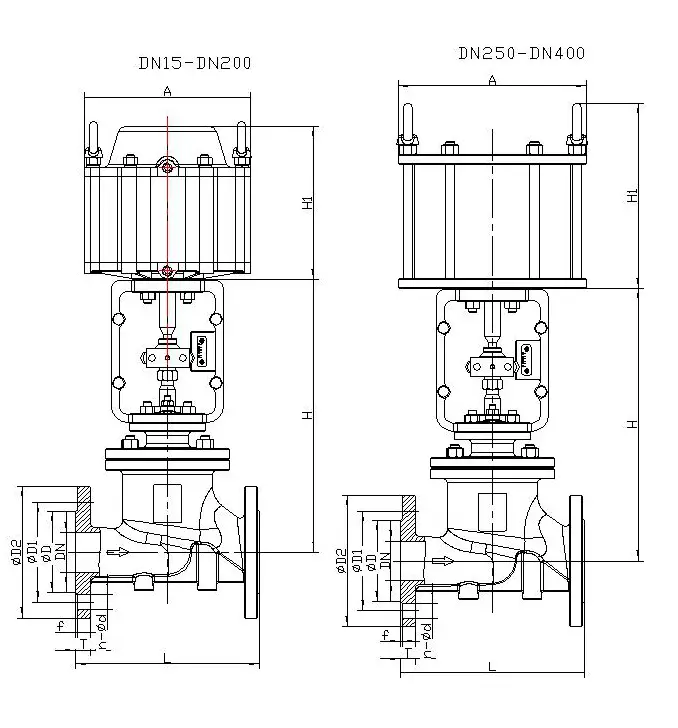

▶ 외형 치수도 / Dimension Table
| M O D E L | L | D | D1 | D2 | T | f | N-Φd | H | DOUBLE ACTING | SINGLE ACTING | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H1 | A | MODEL | H1 | A | MODEL | |||||||||
| DN15 | 130 | 45 | 65 | 95 | 16 | 2 | 4-Φ14 | 292 | 195 | 198 | Φ150D | 195 | 198 | Φ150S |
| DN20 | 150 | 58 | 75 | 105 | 18 | 2 | 4-Φ14 | 294 | 195 | 198 | Φ150D | 195 | 198 | Φ150S |
| DN25 | 160 | 68 | 85 | 115 | 18 | 2 | 4-Φ14 | 298 | 195 | 198 | Φ150D | 195 | 198 | Φ150S |
| DN32 | 180 | 78 | 100 | 140 | 18 | 2 | 4-Φ18 | 321 | 195 | 198 | Φ150D | 195 | 198 | Φ150S |
| DN40 | 200 | 88 | 110 | 150 | 18 | 2 | 4-Φ18 | 329 | 195 | 198 | Φ150D | 195 | 198 | Φ150S |
| DN50 | 230 | 102 | 125 | 165 | 18 | 2 | 4-Φ18 | 342 | 195 | 198 | Φ150D | 195 | 198 | Φ150S |
| DN65 | 290 | 122 | 145 | 185 | 18 | 2 | 4-Φ18 | 424 | 217 | 236 | Φ200D | 217 | 236 | Φ200S |
| DN80 | 310 | 138 | 160 | 200 | 20 | 2 | 8-Φ18 | 427 | 214 | 256 | Φ200D | 214 | 256 | Φ200S |
| DN100 | 350 | 158 | 180 | 220 | 20 | 2 | 8-Φ18 | 443 | 314 | 317 | Φ250D | 314 | 317 | Φ250S |
| DN125 | 400 | 188 | 210 | 250 | 22 | 2 | 8-Φ18 | 546 | 459 | 372 | Φ300D | 459 | 372 | Φ300S |
| DN150 | 480 | 212 | 240 | 285 | 22 | 2 | 8-Φ22 | 576 | 517 | 422 | Φ350D | 517 | 422 | Φ350S |
| DN200 | 600 | 268 | 295 | 340 | 24 | 2 | 12Φ22 | 740 | 697 | 534 | Φ450D | 697 | 534 | Φ450S |
