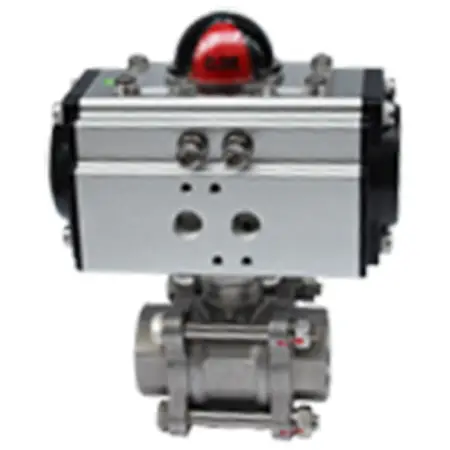

▶ 공통 사항 / Common Specifications
| Valve Size | 8A, 10A, 15A, 20A, 25A, 32A, 40A, 50A | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Actuator Type | 공압식(Pneumatic) / 복동식(Double Acting) | 공압식(Pneumatic) / 단동식(Single Acting) | |||||||
| Actuator Model | BT040D ~ BT075D | BT040S ~ BT083S | |||||||
| Operating Media | 청정한 압축공기 (Compressed Dry Air) | ||||||||
| Operating Pressure | 4 ~ 7 kg/cm²(0.4 ~ 0.7MPa) | 5 ~ 7 kg/cm²(0.5 ~ 0.7MPa) | |||||||
| Rotating Angle | 90º ± 5º | ||||||||
| Operating Temperature | 0 ~ 80℃ (단 동결이 없을 것) | ||||||||
| Rating | 10Kgf/cm² | ||||||||
| Body Material |
| ||||||||
| Accessory | Solenoid Valve, Air filter Regulator, Limit Switch box, E-P Positioner | ||||||||
▶ 외형 치수도 / Dimension Table
| M O D E L | S I Z E | A | A1 | H | L | ØD | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Double(복동) | Single(단동) | MM | INCH | Double(복동) | Single(단동) | Double(복동) | Single(단동) | Double(복동) | Single(단동) | ||
| BT040D-08S3 | BT040S-08S3 | 8A | ¼” | 110 | 56 | 104 | 65 | 8 | |||
| BT040D-10S3 | BT040S-10S3 | 10A | ⅜” | 110 | 56 | 104 | 65 | 10 | |||
| BT040D-15S3 | BT040S-15S3 | 15A | ½” | 110 | 56 | 104 | 65 | 15 | |||
| BT040D-20S3 | BT052S-20S3 | 20A | ¾” | 110 | 150 | 56 | 73 | 118 | 137 | 73 | 20 |
| BT052D-25S3 | BT052S-25S3 | 25A | 1” | 150 | 73 | 140 | 83 | 25 | |||
| BT052D-32S3 | BT063S-32S3 | 32A | 1-1/4” | 150 | 168 | 73 | 83 | 148 | 159 | 99 | 32 |
| BT063D-40S3 | BT075S-40S3 | 40A | 1-1/2” | 168 | 186 | 83 | 96 | 171 | 182 | 110 | 40 |
| BT075D-50S3 | BT083S-50S3 | 50A | 2″ | 186 | 206 | 96 | 104 | 200 | 206 | 126 | 50 |
