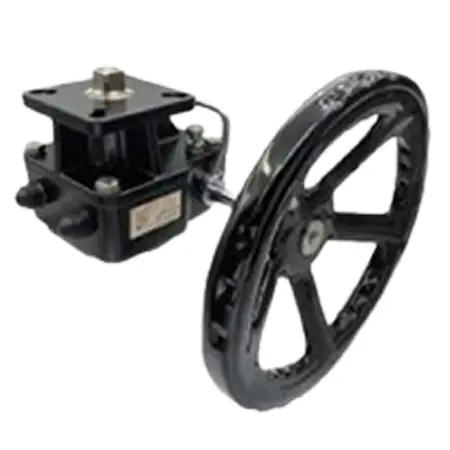

디클러치 기어박스

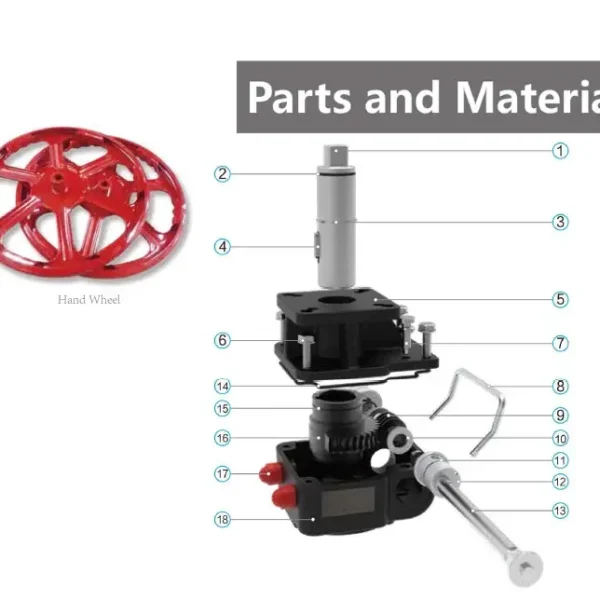

MAIN PART MATERIAL
| NO. | PART NAME | MATERIAL | NO. | PART NAME | MATERIAL |
| 1 | Drice spindle | Alloy steel | 10 | Plane bearing | Alloy steel |
| 2 | Seals | Nitrile rubber | 11 | Seals | Nitrile rubber |
| 3 | Circlp | SUS304 | 12 | Eccentric bushing | Alloy steel |
| 4 | Flat key | Alloy steel | 13 | Transmission rod | Alloy steel |
| 5 | Top cover | Alluminum alloy | 14 | Sealing ring | Nitrile rubber |
| 6 | Fasteners | SUS304 | 15 | Sealing ring | Nitrile rubber |
| 7 | Positioning pins | Alloy steel | 16 | Turbine | Ductile iron |
| 8 | Handle | SUS304 | 17 | Adjust screw | SUS304 |
| 9 | Worm gear | Alloy steel | 18 | Box | Alluminum alloy |

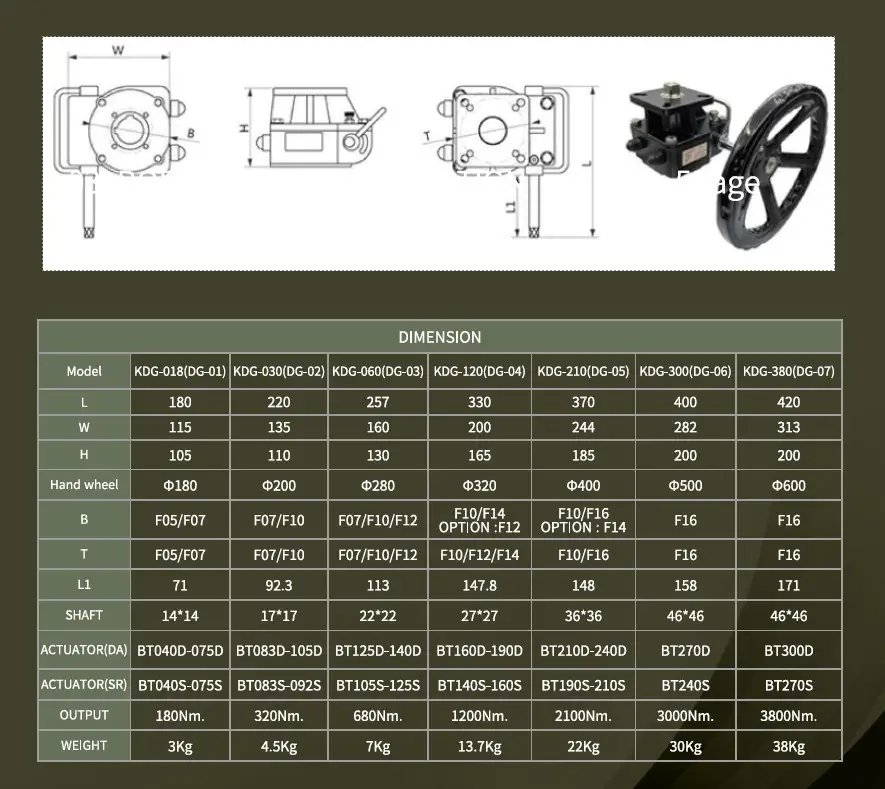

▶ 외형 치수도 / Dimension Table
